What Is A Foot Valve And Why Is It Important in Pump Systems?

INTRODUCTION

Foot valve is an important component of many pump systems to maintain proper liquid flow and improve pump efficiency. It is usually installed at the bottom of a suction pipe inside a tank, well or water source. While foot valves may seem simple, they play a vital role in preventing backflow, maintaining pump power and protecting pump equipment from damage.
Today, foot valves are widely used in agriculture, water treatment, chemicals, construction, municipal water supply systems and other industries. With the requirement of efficiency and reliability of industrial system, foot valve is more and more important in pump operations.

1.What is a foot valve?

Foot valve is a check valve installed at the inlet of the pump suction line. Its main function is to allow the flow of fluid in one direction while preventing reverse flow when the pump stops working.
Most foot valves include:
valve body?
check mechanism
Seal element
A strainer or sieves
The built-in strainer help prevent debris, dirt and large particles from entering the pump system, reducing the risk of clogging and equipment damage.
Because the valve is installed at the "foot" of the suction pipe, it is called the"foot valve."

2. How do foot valves work?

The working principle of foot valve is relatively simple.
When the pump starts to work, suction pressure opens the valve, allowing liquid to enter the suction pipe and move toward the pump.
When the pump stops, gravity and reverse pressure force the valve to close automatically. This prevents the liquid inside the suction pipe from returning to the source tank or well.
By retaining liquid inside the inhaler, the foot valve helps maintain pump in basic condition and ensures that the pump can be restarted efficiently without the need for repeated manual priming.
This function is particularly important for centrifugal pumps and other suction pump systems.

3. Why are foot valves important in Pump Systems?

Foot valves play an important role in maintaining the pump's efficient operation.
One of its main functions is to prevent reflux. If there is no foot valve, the fluid in the suction pipe may be discharged back into the tank long after the pump stops. This can cause quality damage and make restarting the pump more difficult.
Another important benefit is increased pump efficiency. Since suction pipe is still filled with fluid, the pump can be restarted quickly and operate more smoothly.
Foot valves also help reduce wear and tear on pump components and minimize dry operating conditions. Frequent loss of quality pumps can lead to overheating, seal damage and reduced service life.
In many industrial applications, stable flow conditions are essential for production efficiency and system reliability.

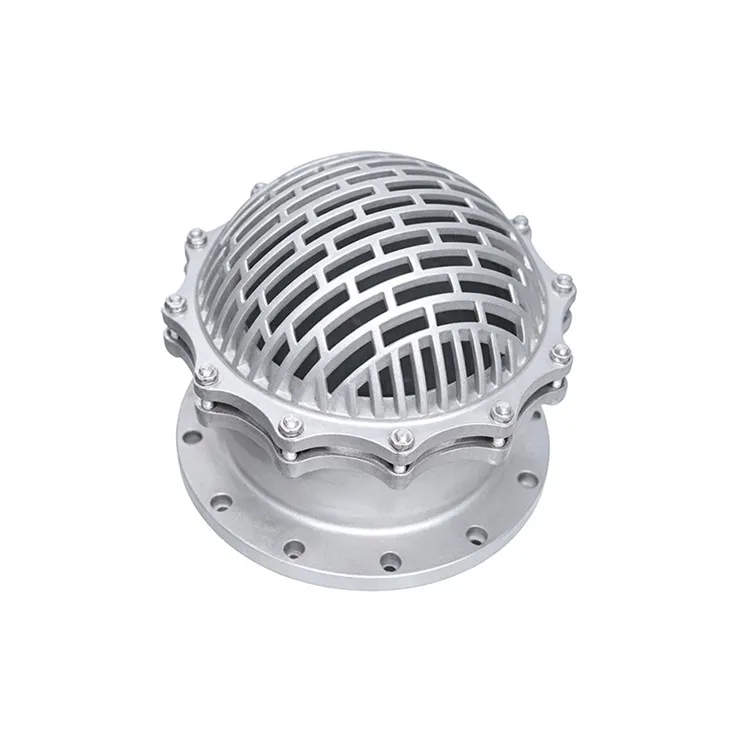

Foot Valve

4. Common Foot Valves Applications

Foot valves are widely used in various fluid transportation systems.
Common applications include:
Agricultural irrigation systems
Water supply system
Deep well pumping
Industrial water diversion
Chemical Treatment Systems
Fire protection systems
Wastewater treatment plants
In agricultural irrigation, foot valves help to maintain a steady flow of water and improve pump start-up efficiency.
In industrial systems, they are often used to protect pumps that handle chemicals, slurry or process liquids.

5. Foot valve manufacturing materials

Different valve materials are selected according to operating conditions and fluid type.
Common materials include:
Cast iron
Stainless steel
Brass
PVC
Ductile iron
Stainless steel foot valves is more and more popular because of its excellent corrosion resistance and durability.
PVC foot valve is often used in water treatment and chemical industry, where corrosion resistance is very important.
The choice of material directly affects valve performance, service life and maintenance requirements.

Conclusion:

Foot valve is a key part of many pump systems, which helps to maintain pump power, prevent backflow and improve pumping efficiency. Although simple in design, it provides important protection for pumps and fluid delivery systems in many industries.
By understanding the working principle and importance of foot valves, users can select the appropriate valve type, improve system reliability and reduce long-term maintenance costs.
