Application of Standards

① Design and Manufacturing: The forged steel fixed ball valve complies with API608, ASME B16.34, and API6D standards.
② Acceptance and Inspection: API598, API6D
③ Flange connection dimensions: ASME B16.5 (NPS≤24), ASME B16.47B Series/A Series, and MSS SP-44 (NPS>24)
④ Welded end: ASME B16.25
⑤ butt and socket welding end: ASME B16. 11
⑥ Structure length: ASME B16. 10
⑦ Temperature rating: ASME B16.34
⑧ Fire safety: API607, API6FA

Product specifications

① Main material: carbon steel, stainless steel, alloy steel
② Nominal diameter: NPS 2 "to NPS 36"
③ Pressure range: CL150~CL2500
④ Operating temperature: -29℃~+450℃
⑤ Drive modes: manual, worm gear, electric, pneumatic, hydraulic
⑥ Application scope: Suitable for water supply, sewage treatment, construction, food processing, and power generation.
It is used for cutting, regulating and throttling in fluid pipelines of medicine, metallurgy, light textile, energy and so on.

Main Components Material

Order No.	Part name	Material
Order No.	Part name	Stainless steel	Cast steel
1	Rear co- ver	A182 F304	ASTM A105
2	Nut bolt	A193 B8	A193 B7
3	Pad	PTEF	PTEF
4	Fixed axis	A182 F304	A182 F6a
5	Valve body	A182 F304	ASTM A105
6	Sleeve bearing	Copper alloy	Copper alloy
7	Pad	PTEF	PTEF
8	O molding ring	NBR	NBR
9	Gasket ring	PTFE	PTFE
10	Spring	17-4PH	17-4PH
11	Valve seat	A182 F304	A182 F6a
12	Bonnet	A182 F304	ASTM A105
13	Spherome	A182 F304	A182 F6a
14	Valve stem	A182 F304	A182 F6a
15	Sleeve bearing	H62	H62
16	O molding ring	NBR	NBR
17	Nut	A1948	A1942H
18	Bolt	A193 B8	A193 B7
19	Protegulum	A182 F304	ASTM A105
20	Oil injection valve	Groupware	Groupware
21	O molding ring	NBR	NBR
22	Land	ASTM A105	ASTM A105
23	Turbine	Groupware	Groupware

Q347F

Q947F

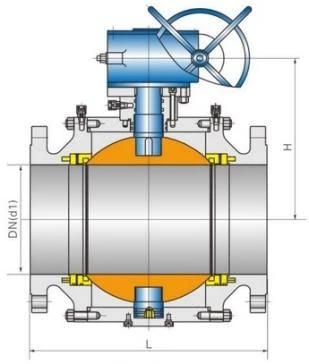

Key size measurements

CLASS150Lb

Inside nominal diameter	NPS	2"	3"	4"	6"	8"	10"	12"	14"	16"	18"	20"
Inside nominal diameter	DN	50	80	100	150	200	250	300	350	400	450	500
d1		51	76	102	152	203	254	305	337	387	438	489
L	RF	178	203	229	394	457	533	610	686	762	864	914
L	BW	216	283	305	457	521	559	635	762	838	914	991
H1		100	110	130	175	210	274	305	340	395	440	470
H		165	90	200	270	300	380	420	450	530	560	605
W		400	700	850	600	600	600	800	800	800	800	800
E					116	116	116	171	171	257	257	257
F		1	1		350	350	350	420	420	500	500	500

CLASS300Lb

Inside nominal diameter	NPS	2"	3"	4"	6"	8"	10"	12 "	14"	16 "	18"	20"
Inside nominal diameter	DN	50	80	100	150	200	250	300	350	400	450	500
d1		51	76	102	152	203	254	305	337	387	438	489
L	RF	216	283	305	403	502	568	648	762	838	914	991
L	BW	216	283	305	457	521	559	635	762	838	914	991
H1		100	110	130	175	210	274	305	340	395	440	470
H		165	190	200	270	300	380	420	450	530	560	605
W		400	700	850	600	600	600	800	800	800	800	800
E					116	116	116	171	171	257	257	257
F		1	1	1	350	350	350	420	420	500	500	500

CLASS400Lb

Inside nominal diameter	NPS	2"	3"	4"	6"	8"	10"	12"	14"	16"	18"	20"
Inside nominal diameter	DN	50	80	100	150	200	250	300	350	400	450	500
d1		51	76	102	152	203	254	305	337	387	438	489
L	RF&BW	292	356	406	495	597	673	762	826	902	978	1054
L	RTJ	295	359	410	498	600	676	765	829	905	981	1060
H1		110	120	140	185	220	270	310	345	410	440	480
H		180	200	210	290	320	380	430	450	550	580	630
W		400	700	850	600	600	600	800	800	800	800	800
E		1	1	1	116	116	116	171	171	257	257	257
F		1	1	1	350	350	350	420	420	500	500	500

CLASS600Lb

Inside nominal diameter	NPS	2"	3"	4"	6"	8"	10"	12"	14"	16"	18"	20"
Inside nominal diameter	DN	50	80	100	150	200	250	300	350	400	450	500
d1		51	76	102	152	203	254	305	337	387	438	489
L	RF&BW	292	356	432	559	660	787	838	889	991	1092	1194
L	RTJ	295	359	435	562	664	791	841	892	994	1095	1200
H1		110	120	140	185	220	270	310	345	410	440	480
H		180	200	210	290	320	380	430	450	550	580	630
W		400	850	1000	600	600	800	800	800	800	800	800
E					116	116	171	171	171	150	83	123
F		1	1	1	350	350	500	420	420	580	650	735

CLASS900Lb

Inside nominal diameter	NPS	2"	3"	4"	6"	8"	10"	12"	14"	16"	18"	20"
Inside nominal diameter	DN	50	80	100	150	200	250	300	350	400	450	500
d1		51	76	102	152	203	254	305	324	375	425	473
L	RF&BW	368	381	457	610	737	838	965	1029	1130	1219	1321
L	RTJ	371	384	460	613	740	841	968	1038	1140	1232	1334
H1		135	158	190	200	250	285	350	400	480	530	580
H		190	200	230	300	375	420	460	530	600	640	700
W		600	600	600	600	800	800	800	800	800	800	800
E		116	116	116	171	171	83	83	123	123	180	150
F		350	350	350	420	420	650	650	735	735	735	735

CLASS1500Lb

Inside nominal diameter	NPS	2"	3"	4"	6"	8"	10"	12"	14"	16"	20"
Inside nominal diameter	DN	50	80	100	150	200	250	300	350	400	500
d1		51	76	102	146	194	241	289	318	362	440
L	RF&BW	368	470	546	705	832	991	1130	1257	1384	1664
L	RTJ	371	473	549	711	841	1000	1146	1276	1407	1686
H1		140	160	200	210	260	300	365	420	500	600
H		200	220	250	320	400	450	490	560	640	790
W		600	600	600	600	800	800	800	800	800	800
E		116	116	171	171	83	83	123	123	180	220
F		350	350	420	420	650	650	735	735	735	735
